Dettagli del prodotto
Luogo di origine: La Cina
Marca: ZWZ / KOYO / NSK / FAG / FSK / OEM
Certificazione: ISO9001-2000 / SGS / BV / CE / IAF
Numero di modello: 314190
Termini di trasporto & di pagamento
Quantità di ordine minimo: 1 pcs-5pcs
Prezzo: 0.1-20USD
Imballaggi particolari: 1)SINGOLO IMBALLAGGIO COLORATO DELLA SCATOLA + IMBALLAGGIO + PALLET DEL CONTENITORE DI CARTONE, 2) I
Tempi di consegna: 3-7days dopo il deposito
Termini di pagamento: Deposito di 30%, equilibrio dopo la copia di BL
Capacità di alimentazione: 100000pcs/month
Modello n.: |
314190 |
Dimensioni: |
× 130mm del × 230mm di 160mm |
Peso: |
17 KG |
Nome del cuscinetto: |
Cuscinetto del laminatoio |
Fila: |
Tetrastico |
L'altro modello: |
FC3246130 |
Modello n.: |
314190 |
Dimensioni: |
× 130mm del × 230mm di 160mm |
Peso: |
17 KG |
Nome del cuscinetto: |
Cuscinetto del laminatoio |
Fila: |
Tetrastico |
L'altro modello: |
FC3246130 |
Gabbia cilindrica tetrastica dell'ottone di cuscinetto a rulli FC3246130 di certificazione 314190 di iso
Disegno sopportante 314190 e specificazione:
Numero di modello | 314190 |
Nome di parte | Cuscinetto a rulli cilindrico |
Marca | ZWZ/KOYO/NSK/FATICA/FSK/OEM |
Valutazione di precisione | ABEC-3/ABEC-5 |
Fila | Tetrastico |
Dimensioni (millimetro) (d*D*b) | × 130mm del × 230mm di 160mm |
Peso/Massachussets (chilogrammo) | 17kg |
Codice di HS | 8482500000 |
Manifestazione originale del paese | La CINA |

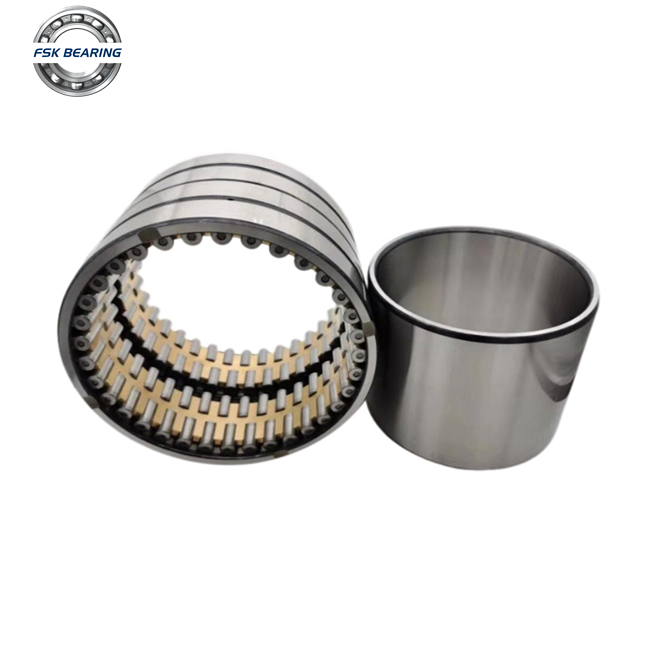

Immagini dettagliate dei cuscinetti:
Elenco dei pezzi dei nostri cuscinetti a rulli cilindrici tetrastici
Dimensione (millimetro) | SpeedRPM limitato) | Sopportando no. | OEM no. | |||||||
d | D | B | Olio | Grasso | FSK | FATICA | NSK | NTN | KOYO | |
100 | 135 | 80 | 3500 | 4100 | FC202780 | |||||
100 | 140 | 70 | 3400 | 4000 | FC202870 | |||||
100 | 140 | 80 | 3400 | 4000 | FC202880 | |||||
100 | 145 | 70 | 3400 | 4000 | FC202970 | |||||
100 | 150 | 106 | 3400 | 4000 | FC2030106 | |||||
110 | 170 | 90 | 2800 | 3600 | FC223490 | 22FC1790 | ||||
110 | 170 | 120 | 2800 | 3600 | FC2234120 | 110RV1701 | ||||
110 | 180 | 92 | 2600 | 3400 | FC243692 | 4R2437 | ||||
110 | 180 | 105 | 2600 | 3400 | FC2436105 | 4R2438 | 4CR120 | |||
130 | 200 | 104 | 2400 | 3000 | FC2640104 | 4R2628 | 26FC20104 | |||
130 | 200 | 125 | 2400 | 3000 | FC2640125 | 130RV2001 | 26FC20125 | |||
140 | 190 | 119 | 2400 | 3000 | FC2838119 | 4R2832 | 28FC19119W | |||
140 | 210 | 80 | 2200 | 2800 | FC284280 | |||||
140 | 210 | 106 | 2200 | 2800 | FC2842106 | |||||
140 | 210 | 125 | 2200 | 2800 | FC2842125 | |||||
140 | 210 | 155 | 2200 | 2800 | FC2842155 | |||||
145 | 210 | 155 | 2200 | 2800 | FC2942155 | 314625 | 511605 | 145RV2101 | 4R2906 | 29FC21155 |
145 | 225 | 156 | 2000 | 2600 | FC2945156 | 313924A | 538522 | 145RV2201 | 4R2904 | 313924 |
150 | 200 | 120 | 2200 | 2800 | FC3040120 | 30FC20120 | ||||
150 | 210 | 120 | 2200 | 2800 | FC3042120 | |||||
150 | 210 | 120 | 2200 | 2800 | FCD3042120 | |||||
150 | 210 | 120 | 2200 | 2800 | FCD3042120 | 30FC21120 | ||||
150 | 210 | 150 | 2200 | 2800 | FC3042150 | 30FC21150 | ||||
150 | 220 | 120 | 2000 | 2600 | FC3044120 | |||||
150 | 220 | 127 | 2000 | 2600 | FC3044127 | 4R3036 | ||||
150 | 220 | 150 | 2000 | 2600 | FC3044150 | 30FC22150 | ||||
150 | 220 | 150 | 2000 | 2600 | FC3044150A | 150RV2201 |
4R3031/ 4R3056 |
30FC22150A | ||
150 | 225 | 112 | 2000 | 2600 | FCD3045112 | |||||
150 | 225 | 120 | 2000 | 2600 | FC3045120 | |||||
150 | 225 | 120 | 2000 | 2600 | FCD3045120 | |||||
150 | 225 | 150 | 2000 | 2600 | FC3045150 | |||||
150 | 225 | 150 | 2000 | 2600 | FC3045150A | 150RV2203 | ||||
150 | 225 | 136 | 2000 | 2600 | FC3045136 | 150RV2204 | ||||
150 | 230 | 130 | 2000 | 2600 | FC3046130 | 150RV2301 | 4R3029 | |||
150 | 230 | 156 | 2000 | 2600 | FC3046156 | 313891A | 506962 | 150RV2302 | 4R3040 | 313891-1 |
150 | 230 | 168 | 2000 | 2600 | FC3046168 | 4R3042 | ||||
150 | 250 | 120 | 2000 | 2600 | FC3050120 | |||||
150 | 250 | 150 | 2000 | 2600 | FC3050150 | 4R3039 | ||||
160 | 220 | 180 | 2000 | 2600 | FC3244180 | 4R3224 | 32FC22180 | |||
160 | 230 | 130 | 2000 | 2600 | FC3246130 | 314190 | 502894 | 4R3226 | 314190 | |
160 | 230 | 130 | 2000 | 2600 | FC3246130A | 160RV2301 | ||||
160 | 230 | 168 | 2000 | 2600 | FC3246168 | 315189A | 510150B | 4R3232 | 32FC23170B | |
160 | 230 | 168 | 2000 | 2600 | FC3246168A | 160RV2302 | 4R3229 | 32FC23170A | ||
160 | 230 | 168 | 2000 | 2600 | FC3246168A1 | 4R3231 | 32FC23170 | |||
160 | 230 | 180 | 2000 | 2600 | FC3246180 | 4R3228 | 32FC23180A | |||
160 | 230 | 180 | 2000 | 2600 | FC3246180A | 160RV2303 | ||||
160 | 240 | 120 | 1900 | 2400 | FC3248120 | 160RV2401 | 32FC24120W | |||
160 | 240 | 124 | 1900 | 2400 | FC3248124 | |||||
160 | 240 | 145 | 1900 | 2400 | FC3248145 | 160RV2403 | ||||
160 | 240 | 168 | 1900 | 2400 | FC3248168 | |||||
160 | 240 | 168 | 1900 | 2400 | FCD3248168 | |||||
160 | 240 | 170 | 1900 | 2400 | FC3248170 | 160RV2402 | 4R3225 | 32FC24170 | ||
170 | 230 | 120 | 1900 | 2400 | FC3446120 | 170RV2301 |
4R3426/ 4R3443 |
34FC23120 | ||
170 | 230 | 130 | 1900 | 2400 | FC3446130 | 313673 | 508370 | |||
170 | 230 | 160 | 1900 | 2400 | FCD3446160 | 567622 | ||||
170 | 230 | 180 | 1900 | 2400 | FC3446180 | |||||
170 | 240 | 130 | 1800 | 2300 | FC3448130 | BC4B635122 | 510440B | |||
170 | 240 | 156 | 1900 | 2400 | FC3448156 | 4R3429 | 34FC24156B | |||
170 | 240 | 156 | 1900 | 2400 | FC3448156A | 34FC24156A | ||||
170 | 240 | 160 | 1900 | 2400 | FC3448160 | 170RV2402 | 4R3423 | |||
170 | 240 | 190 | 1900 | 2400 | FC3448190 | 34FC24190 | ||||
170 | 250 | 168 | 1800 | 2200 | FC3450168 | 170RV2501 | 34FC25168 | |||
170 | 250 | 168 | 1800 | 2200 | FC3450168A |
4R3432/ 4R3428 |
||||
170 | 250 | 170 | 1800 | 2200 | FC3450170 | 170RV2502 | 34FC25170 | |||
170 | 255 | 180 | 1800 | 2200 | FC3451180 | 170RV2503 | 4R3425 | |||
170 | 260 | 120 | 1800 | 2200 | FC3452120 | |||||
170 | 260 | 150 | 1800 | 2200 | FC3452150 | 170RV2602 | 34FC26150 | |||
170 | 260 | 150 | 1800 | 2200 | FC3452150A | 4R3433 | ||||
170 | 260 | 170 | 1800 | 2200 | FC3452170 | |||||
170 | 260 | 225 | 1800 | 2200 | FC3452225 | 313587B | 505470 | 4R3431 | ||
180 | 250 | 100 | 1800 | 2200 | FCD3650100 | |||||
180 | 250 | 120 | 1800 | 2200 | FC3650120 | |||||
180 | 250 | 156 | 1800 | 2200 | FC3650156 | 180RV2501 | 4R3625 | 36FC25156A | ||
180 | 250 | 168 | 1800 | 2200 | FC3650168 | 180RV2601 | 4R3639 |
313812W/36 FC26168 |
||
180 | 260 | 120 | 1800 | 2200 | FC3652120 | |||||
180 | 260 | 124 | 1800 | 2200 | FC3652124 | |||||
180 | 260 | 168 | 1800 | 2200 | FC3652168 | 313812 | 507536 | 180RV2601 | 4R3628 | 313812W |
180 | 260 | 168 | 1800 | 2200 | FCD3652168 | |||||
180 | 265 | 180 | 1800 | 2200 | FC3653180 | 180RV2602 | 4R3618 | |||
180 | 265 | 180 | 1800 | 2200 | FC3653180A | 180RV2603 | 36FC27180 | |||
180 | 280 | 180 | 1700 | 2000 | FC3656180 | 524372 | ||||
180 | 280 | 180 | 1700 | 2000 | FC3645180A | 180RV2802 | ||||
190 | 260 | 124 | 1700 | 2000 | FC3852124 | |||||
190 | 260 | 124 | 1700 | 2000 | FC3852124A | |||||
190 | 260 | 168 | 1700 | 2000 | FC3852168 | 313651 | 507735 | 190RV2601 | 4R3820 | 38FC26168-1 |
190 | 260 | 168 | 1700 | 2000 | FC3852168A | |||||
190 | 265 | 124 | 1700 | 2000 | FC3853124 | |||||
190 | 270 | 168 | 1700 | 2000 | FC3854168 | |||||
190 | 270 | 170 | 1700 | 2000 | FC3854170 | 190RV2703 | 38FC27170 | |||
190 | 270 | 170 | 1700 | 2000 | FC3854170A | 190RV2702 | 4R3818 | 38FC27170A | ||
190 | 270 | 200 | 1700 | 2000 | FC3854200 | 314199B | 508657 | 190RV2701 |
4R3821/ 4R3817 |
314199 |
190 | 280 | 200 | 1700 | 2000 | FC3856200 | 314049A | 510199 | 190RV2801 |
4R3823/ 4R3830 |
38FC28200 |
190 | 280 | 200 | 1700 | 2000 | FC3856200A | 313583 | ||||
190 | 290 | 190 | 1700 | 2000 | FC3858190 | 38FC29190 | ||||
200 | 250 | 200 | 1700 | 2000 | FC4050200 | 200RV2521 | ||||
200 | 270 | 170 | 1600 | 1900 | FC4054170 | 314553 | 522742B | 4R4039 | 314553 | |
200 | 280 | 152 | 1600 | 1900 | FC4056152 | 4R4054 |
40FC28152 BW |
|||
200 | 280 | 170 | 1600 | 1900 | FC4056170 | 314385 | 507344 | 4R4048 | 40FC28170 | |
200 | 280 | 170 | 1600 | 1900 | FC4056170A | 549864 | 200RV2804 | |||
200 | 280 | 188 | 1600 | 1900 | FC4056188 | 40FC28188 |
La nostra altra vendita calda Produsts
1. cuscinetto a sfera profondo 6000,6200,6300,6400,61800,61900, Z, RS, ZZ, 2RS della scanalatura
2. cuscinetto a rulli sferico 22200,22300,23000,24000,23100,24100, CA, cc, E, W33
3. bearingN cilindrico del rullo, NU, NJ, NN, NUP, E, PCE, ECM, ECJ
4. cuscinetto a rulli conici 30200,30300,32200,32300,31300,32000
5. cuscinetto a sfera d'allineamento 1200,1300,2200,2300,
6. Na del cuscinetto a rulli dell'ago, NAV, NK, NKI, RNA, NK, RNAV, ZKLF, ZKLN, ZARF, ZARN
7. cuscinetto a sfere di spinta 51100,51200,51300,51400, E, m.
8. palla angolare bearing7000,7100,7200,7300, CA, BECBM, C del contatto
9. GE sopportante normale sferico, GEG, GEEW, U, UC, ug, GX, GAC, SA, SABP
Circa Wuxi FSK Bearing Company
La gabbia cilindrica tetrastica dell'ottone di cuscinetto a rulli FC3246130 di certificazione 314190 di iso, ora ottiene il prezzo economico dalla fabbrica del cuscinetto della Cina!
Contatto con noi liberamente:
